Parsers don’t have to be complicated

Introduction

Years ago I started writing a proper shader front-end parser for bgfx and used the Lemon parser generator. It was small, it worked, but I never liked the code it produced. The generated output felt hard to read, and the code that generated the parser also felt alien to me. Every time the grammar changed I had to re-learn the shape of the resulting code. It solved the problem, but eventually I abandoned it.

On the other side of the spectrum I kept writing ad-hoc parsers for smaller things where using something like Lemon was overkill. Pointer arithmetic, manual loops over characters, a handful of strchr/strncmp style calls, some state variables, and a hope that I hadn’t missed an edge case. These were fast and had no dependencies, but they always ended up repeating the same patterns: skipping whitespace, collecting identifiers, tracking line numbers for error messages, handling the inevitable off-by-one when the input wasn’t perfectly formed. Each new parser became its own little minefield of one-off bugs, and every new thing that needed parsing got its own private copy of them.

Most of this ad-hoc parsing code looked roughly like this:

 1const char* pos = input.getPtr();
 2const char* end = input.getTerm();
 3
 4while (pos < end
 5   &&  bx::isSpace(*pos) )
 6{
 7    ++pos;
 8}
 9
10const char* start = pos;
11while (pos < end
12   && (bx::isAlphaNum(*pos) || *pos == '_') )
13{
14    ++pos;
15}
16
17bx::StringView ident(start, pos);

Multiply that pattern by every token type, add manual line counting, add handling for \r\n versus \n, and you have the classic ad-hoc scanner. It works and it is fast. I’ll leave it to the reader’s imagination how the same logic would look after someone decided it needed to be “modern” and rewrote it with Boost.Spirit.

What I wanted was something in between: a small set of reusable primitives that took care of the repetitive parts of scanning without dragging in a generator or a dependency graph. Zero-copy, allocation-free, and readable in a debugger. That is what bx::Scanner is. It is not a parser generator and not a Parsing Expression Grammars (PEG) library, and it is not trying to become either.

Design

bx::Scanner is built around a small set of deliberate constraints:

• Zero-copy and non-owning. The scanner never allocates and never copies text. Every result is a StringView that points directly into the original input, including the empty ones, which point at the cursor rather than at nothing.

• One cursor, and it never moves on its own. A single current position. accept / acceptWhile / acceptUntil move it forward. peek runs the same test without moving. seek and reset exist, but nothing backtracks implicitly.

• Built-in line and column tracking. Any movement across a newline updates the line number, including a backwards seek. getLine and getColumn are always available and both are one-based, which makes decent error messages nearly free.

• Character classes instead of a mini-language. A handful of classes (Class::Space, Class::NonSpace, Class::Identifier, Class::EndOfLine, Class::NewLine) cover most everyday scanning. Anything more specific is an ordinary bool(*)(char) predicate handed to accept / acceptWhile. There is no pattern language to learn, and nothing to debug except your own function.

• Tiny surface area. The whole public interface fits in one small header.

The workflow is always the same: construct a Scanner over a StringView, then peek and accept until you are done.

1bx::Scanner scanner(input);
2
3// Skip leading whitespace.
4scanner.accept(bx::Scanner::Class::Space);
5
6// Read an identifier.
7const bx::StringView ident = scanner.accept(bx::Scanner::Class::Identifier);

accept consumes matching text and returns it as a StringView. If the expected token is not there it returns an empty view and leaves the cursor alone, so you can go try the next alternative. peek runs the same test without moving.

StringView has no operator bool, so a successful match reads as !scanner.accept('=').isEmpty(). Noisier than returning a bool, but the matched text comes back with the answer instead of requiring a second call to go get it.

Here is how it is actually used in bx today.

LineReader, the simplest helper

LineReader splits input into lines, handles \n and \r\n, and trims the stray trailing \r that malformed input likes to leave behind:

1for (bx::LineReader lr(fileContents); !lr.isDone(); )
2{
3    const bx::StringView line = lr.next();
4
5    // `line` excludes the terminator, and lr.getLine() is its line number.
6}

Note the loop condition. The obvious-looking while (!lr.next().isEmpty() ) is wrong. A file can contain a blank line, and that blank line is a valid result. Empty means “this line has no characters”, not “there are no more lines”, so the exhaustion test has to be isDone.

INI parsing, and sub-scanners

This one replaced a third-party INI library outright. A Scanner is constructed from a StringView and acceptUntil returns a StringView, so a single line can become its own scanner:

 1bx::Scanner scanner(data);
 2
 3while (!scanner.isDone() )
 4{
 5    scanner.accept(bx::Scanner::Class::Space);
 6
 7    // One line, as its own scanner. Nothing below can run past the end of
 8    // the line, no matter how malformed the line turns out to be.
 9    bx::Scanner line(scanner.acceptUntil(bx::Scanner::Class::EndOfLine) );
10
11    if (!line.accept(';').isEmpty() )   // Line comment.
12    {
13        continue;
14    }
15
16    if (!line.accept('[').isEmpty() )   // [section] header.
17    {
18        line.accept(bx::Scanner::Class::Space);
19        const bx::StringView name = bx::strRTrimSpace(line.acceptUntil("]") );
20
21        if (!line.accept(']').isEmpty()
22        &&  !name.isEmpty() )
23        {
24            section = addSection(name);
25        }
26
27        continue;
28    }
29
30    const bx::StringView name = bx::strRTrimSpace(line.acceptUntil("=") );
31
32    if (line.accept('=').isEmpty()
33    ||  name.isEmpty() )
34    {
35        continue;
36    }
37
38    line.accept(bx::Scanner::Class::Space);
39    setProperty(section, name, bx::strRTrimSpace(line.acceptAll() ) );
40}

The sub-scanner is doing real work here. In the ad-hoc version, the bug you write is always the same one: some malformed line is missing its ] or its newline, and the parser happily runs into the following lines looking for it. Bounding the inner scanner to a single line makes “run past the end of a malformed line” unrepresentable rather than merely unlikely.

URL parsing and what empty means

Because a match comes back as a StringView and not a bool, “matched nothing” and “didn’t match” arrive as the same value. acceptUntil is where this is most visible: it returns empty both when _find isn’t in the input at all and when _find is already sitting at the cursor, and in neither case does the cursor move.

Most of the time that collapse is the answer you wanted rather than something to work around. An empty token is a legitimate token: http://example.com has no path, and most URLs have no userinfo. Since the empty view still points at the cursor, it is a zero-length slice of the input rather than a hole, so it can go straight into the result:

1const bx::StringView authority = scanner.acceptWhile(isNotSlash);

It only matters when the structure depends on whether a delimiter was there, and then the token is the wrong thing to ask. Ask the input instead, with accept if you want to consume the delimiter or peek if you don’t.

 1bx::Scanner scanner(url);
 2
 3const bx::StringView scheme = scanner.acceptUntil("://");
 4
 5// `scheme` is empty for "/tmp/file" and for "://host" alike, so the
 6// question of whether there was a scheme is asked separately.
 7const bool hasScheme = !scanner.accept("://").isEmpty();
 8
 9const bx::StringView authority = scanner.acceptWhile(isNotSlash);
10
11const bool hasPath = !scanner.peek('/').isEmpty();

Rule of thumb: the return value is the token; peek or accept answers the structural question “was the delimiter present?”. When a single return value is not enough-when a token is assembled from several accepts getCursor and between capture the full span.

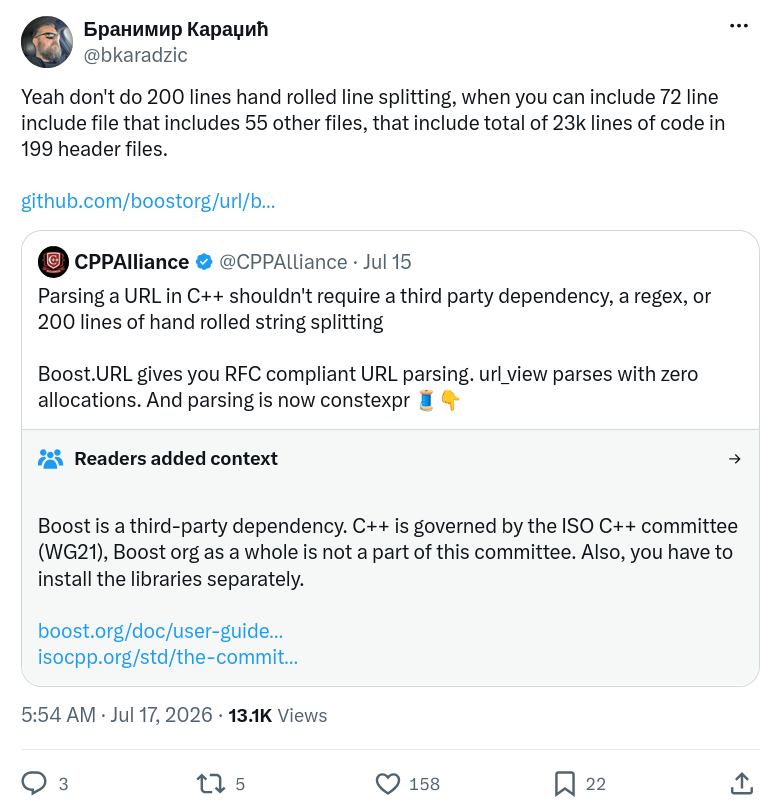

Total 75 lines of code to parse URL, not 23k lines of C++ header files…

File path normalization

Path handling has to deal with drive letters, mixed / and \, and collapsing . and ... Separators are matched with a predicate rather than a string, because accept("/\\") would look for the literal two-character sequence /\:

 1bx::Scanner scanner(src);
 2
 3if (2 <= src.getLength()
 4&&  ':' == src.getPtr()[1])       // Windows drive letter.
 5{
 6    size += write(&writer, toUpper(src.getPtr()[0]), &err);
 7    size += write(&writer, ':', &err);
 8    scanner.seek(2);
 9}
10
11const bool rooted = !scanner.accept(isPathSeparator).isEmpty();
12
13while (!scanner.isDone()
14&&     err.isOk() )
15{
16    if (!scanner.acceptWhile(isPathSeparator).isEmpty() )
17    {
18        trailingSlash = scanner.isDone();
19        continue;
20    }
21
22    const bx::StringView component = scanner.acceptWhile(isNotPathSeparator);
23
24    // `.` is skipped, `..` rewinds the writer to the previous separator.
25}

The .. handling rewinds the output rather than the input, with a watermark marking the prefix that .. is not allowed to escape. The scanner’s job is only to hand over one component at a time, which is exactly the part that used to be fiddly.

Stack trace symbolication

Turning a line of atos or addr2line output into a function name plus file and line replaces a cluster of strstr calls and pointer arithmetic:

 1for (bx::LineReader lr({atosBuffer, bytes}); !lr.isDone(); )
 2{
 3    bx::Scanner scanner(lr.next() );
 4
 5    functionName = scanner.acceptUntil(" (");
 6
 7    if (functionName.isEmpty() )
 8    {
 9        break;
10    }
11
12    scanner.accept(" (");
13
14    filePath = scanner.acceptUntil(":");
15
16    if (filePath.isEmpty() )
17    {
18        filePath = "<Unknown?>";
19        break;
20    }
21
22    scanner.accept(':');
23
24    const bx::StringView lineStr = scanner.acceptUntil(")");
25
26    if (!lineStr.isEmpty() )
27    {
28        bx::fromString(&line, lineStr);
29    }
30}

This is the collapse from the previous section working in your favour. An empty function name is not a valid result, so “missing” and “empty” being indistinguishable is exactly what you want, and the plain return value is the only test needed.

Conclusion

I first needed this the last time I was writing yet another ad-hoc parser, this time for addr2line output. That produced (now deleted) strConsumeTo, which later became the core of bx::Scanner.

By using bx::Scanner I managed to delete: an INI library dependency, and three hand-rolled copies of the same whitespace-and-identifier loop, in URL parsing, path normalization, and stack trace symbolication.

If you find yourself writing yet another pointer-chasing loop to skip whitespace and collect an identifier, consider reaching for something like this instead. Parsers really don’t have to be complicated.
